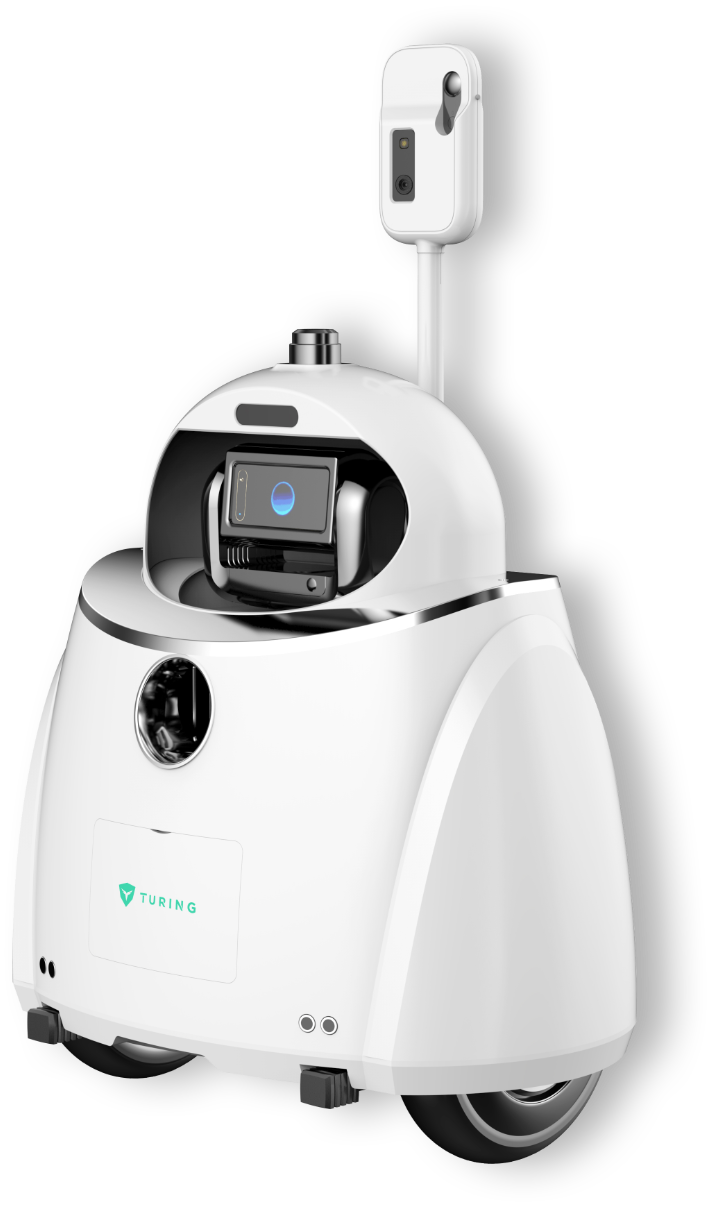

NIMBO Autonomous Patrol Robot

  • 24-hour autonomous patrol with auto charging
  • Anomalies detection via real-time video recording and analysis
  • Send alert to control center and record video evidences
  • Can be remotely controlled via mobile app
  • Automatically avoids obstacles on its path

What’s New For 2020

Upgraded navigation
processors and WIFI
connectivity
360-degree HD
camera
Upgraded TOF lidar
with effective range of
40m.
Onboard
environmental sensors
Allow maps and
routes sharing
among
robots

Typical Application

Shopping Mall Operations Automation

24-hour autonomous patrol with auto charging

Send alert to control center and record video evidences

Automatically avoids obstacles on its path

Anomalies detection via real-time video recording and analysis

Can be remotely controlled via mobile app

Product Specification

  • TVLB-C-100TRMS
  • TVRBT-C-NIM-1STRM

Mobile Platform

Platform Dimension

  • 66cm x 57cm x 30cm
    (26" H x 22" W x 12" D)

Exterior Dimension

  • 82cm x 60cm x 41cm
    (32" H x 23" W x 16" D)

Weight

  • 28 kg (62 lbs)

Steering

  • Wheel speed differential

Maximum Speed

  • 18 km/h (11MPH)

Minimum Speed

  • 5 km/h (3MPH)

Maximum Angle of Climb

  • 15 degrees


Typical Range

  • 30km (18.5 miles)

Power and Battery

Battery Type

  • 37V Lithium Ion

Battery Capacity

  • 329 Wh

Charge Time

  • 165 minutes

Protections

  • Protection for short circuit, over charging, high temperature

Mobile Platform 2

Platform Dimension

  • 66cm x 57cm x 30cm
    (26" H x 22" W x 12" D)

Exterior Dimension

  • 82cm x 60cm x 41cm
    (32" H x 23" W x 16" D)

Weight

  • 28 kg (62 lbs)

Steering

  • Wheel speed differential

Maximum Speed

  • 18 km/h (11MPH)

Minimum Speed

  • 5 km/h (3MPH)

Maximum Angle of Climb

  • 15 degrees


Typical Range

  • 30km (18.5 miles)

Power and Battery 2

Battery Type

  • 37V Lithium Ion

Battery Capacity

  • 329 Wh

Charge Time

  • 165 minutes

Protections

  • Protection for short circuit, over charging, high temperature
